Local

Texas State Cluster: LEAP2

_images/21.png

Texas State University has its own HPC cluster available to Texas State researchers called LEAP2. With 5,808 total CPU cores, 8 NVIDIA A100 GPU nodes, and 100 GB/s, it is a respectable HPC system capable of rigorous scientific workloads. Any student or faculty member can request allocation space through the LEAP2 portal here , though it is also open to requests for external collaborators. Documentation for using the LEAP2 cluster can be found here . It utilizes a SLURM scheduler and is Linux-based.

Access instructions: Not every student at Texas State is going to have access to to the LEAP2 cluster, but if you are a student or researcher in need of HPC resources, you can request an account.

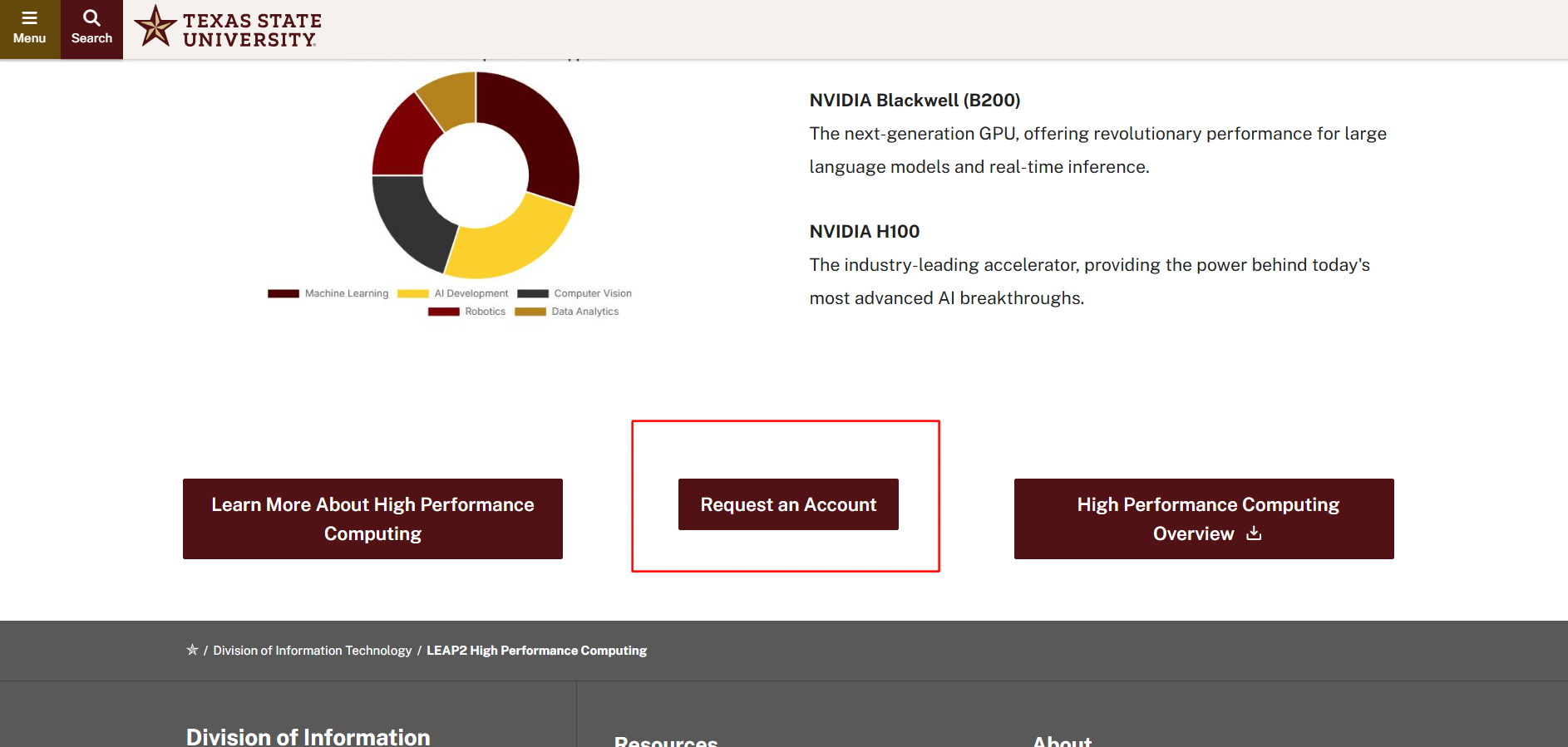

Go to: https://doit.txst.edu/hpc.html and scroll to the bottom of the page. Click on the “Request an Account” button:

_images/11.png

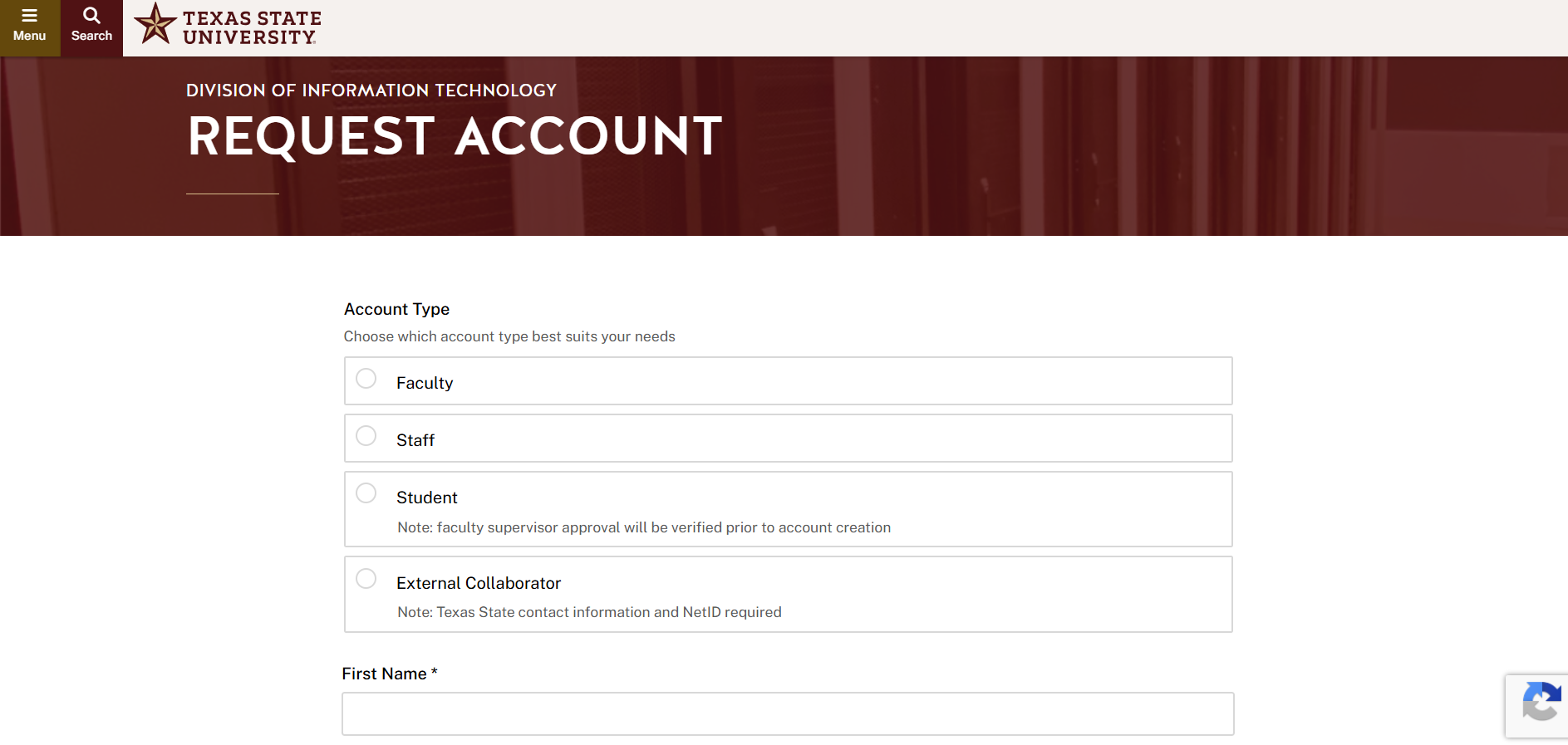

First, it will ask you to sign in with your Texas State credentials. After signing in, you will be brought to a form:

_images/21.png

Fill out the form and submit it. Keep in mind that you will need to have a research advisor or faculty supervisor if you are still a student.

Once an account has been created, you will receive an e-mail from Shane Flaherty with instructions on how to access the cluster.

You can access the cluster through a terminal using SSH on Texas State Wifi (TXST-Bobcats or TXST-Guest), or off-campus as long as you have our VPN: https://services.txst.edu/TDClient/39/ITAC/Requests/ServiceDet?ID=86

Accessing LEAP2 via command line: You can SSH into LEAP2 using the following command:

ssh [YOUR TX STATE USERNAME]@leap2.txst.edu

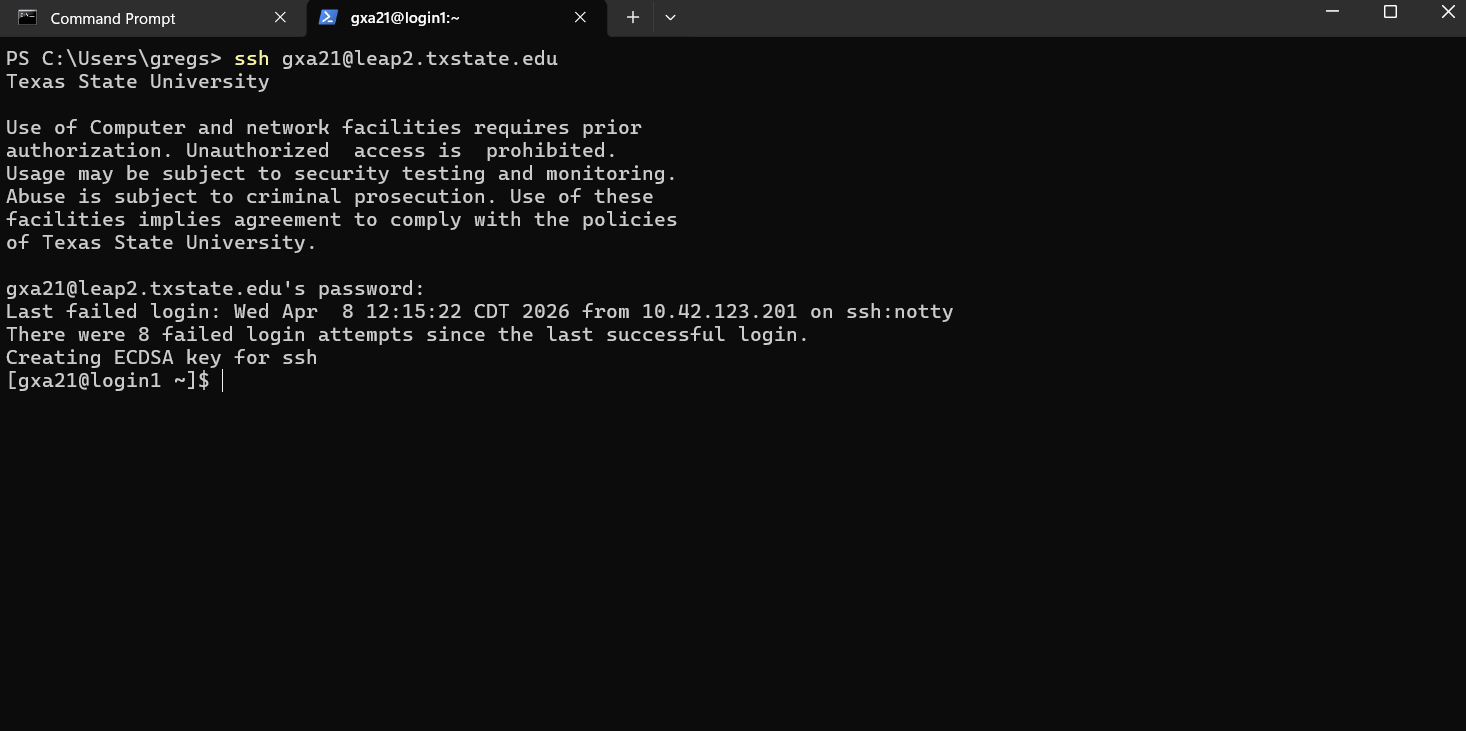

You will then be prompted to enter your password. Once you have accessed the system, you will see this prompt:

_images/cmd-1.png

You are now registered with LEAP2. For more information on the system, see the following documentation: https://itrcstats2.itrc.txstate.edu/wiki/index.php?title=Main_Page

Engineering Center HPC Cluster

Will put more information here when Dr. Valles finishes building his cluster.

Other Texan HPC resources

Like UT Austin, Texas A&M, UT Dallas, and the University of Houston have HPC clusters of varying size and scale. Although these university-specific clusters are typically only available to students and faculty of the university, they are often accessible through joint research grants, so if you are partnered with one of these institutions, it may be worth examining what resources you have access to.
